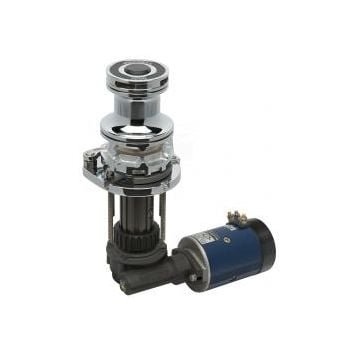

Windlass VWRC10-8 Vertical/Horizontal – With Capstan, 24V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
AED 4,378.95
OEM: P102587
Request a Quote
Description
Maxwell Windlass + capstan VW10-8 24V 1000W 100mm TDC (8mm short link chain & 14-16mm rope)
| Model | VW10-8 |
| Maximum pull | 700 kg (1540 lbs) |
| Static hold | 1500 kg (3300 lbs) |
| Chain short link | 8 mm |
| Line speed** (normal speed) | 24 m/min or 79 ft/min |
| Power supply (dc) | 12 or 24 |
| Motor (watts) | 1000 W |
| Net weight (electric) | 19 kg (42 lbs) |
** Performance of windlass when hauling rope with capstan. Chain speed may vary depending on size of chain and gypsy.
Note: VW10-8 Suitable for 8mm (5/16”) Chain and 14-16mm (9/16-5/8”) Nylon Rope
