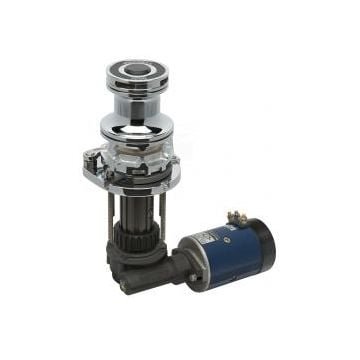

Windlass VWRC10-10 Vertical/Horizontal – With Capstan, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
AED 4,201.42
OEM: P102591
Request a Quote
Description
Maxwell Windlass + capstan VW10-10 24V 1200W 100mm TDC (10mm short link chain & 16mm rope)
| Model | VW10-10 |
| Maximum pull | 850 kg (1870 lbs) |
| Static hold | 1500 kg (3300 lbs) |
| Chain short link | 10 mm |
| Line speed** (normal speed) | 24 m/min or 79 ft/min |
| Power supply (dc) | 12 or 24 V |
| Motor (watts) | 1200 W |
| Net weight (electric) | 20 kg (44 lbs) |
** Performance of windlass when hauling rope with capstan. Chain speed may vary depending on size of chain and gypsy.
Note: VW10-10 Suitable for 10mm (3/8”) Chain and 16mm (5/8”) Nylon Rope
