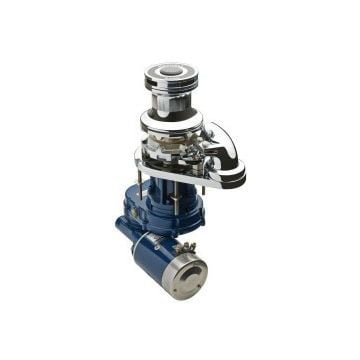

Windlass VWC1500 Vertical – With Capstan, 12V, 1200W, 850 kg Max Pull, 6-10mm Chain, 100mm TDC, CW
AED 13,228.59
OEM: P102723
Request a Quote
Description
Maxwell Windlass+capstan VWC1500 12V CW “100 mm TDC 1200W (6-8 mm short link chain) (clockwise) Note: specify chainwheel size at the time of order
| Model | 1500 |
| Maximum pull | 850 kg (1870 lbs) |
| Static hold | 1500 kg (3300 lbs) |
| Chain short link | 6-10 mm |
| Line speed** (normal speed) | 18 m/min or 60 ft/min |
| Power supply (dc) | 12 or 24V |
| Motor (watts) | 1200 W |
| Net weight (electric) | 24 kg (52 lbs) |
| Hydraulic pressure | 138 bar or 2000 psi |
| Hydraulic flow | 20 lpm or 5.3US gpm |
| Net weight (Hyd) | 17 kg (37 lbs) |
Models VWC1500 are also available in 50mm & 150 TDC (Top deck clearance) on request.
Note: 1500 VWCLP Suitable for 6-8mm Chain (Chainwheel selected separately)
All VWC dc models are supplied with reversing solenoid & foot switches. All VWC models come with emergency crank handle & clutch control lever.
VWC windlass includes motor/gearbox, chainwheel and reversing solenoid. Please contact Exalto Emirates to select the chainwheels when ordering our VW windlass. Other electrical accessories need to be ordered separately
