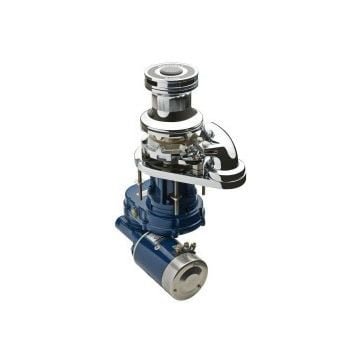

Windlass VWC1000 Vertical – With Capstan, 24V, 1000W, 700 kg Max Pull, 6-10mm Chain, 100mm TDC, CW
AED 12,463.13
OEM: P102718
Request a Quote
Description
Maxwell Windlass+capstan VWC1000 24V CW “100 mm TDC 1000W (6-8 mm short link chain) (clockwise) Note: specify chainwheel size at the time of order
| Model | 1000 |
| Maximum pull/lift | 700 kg (1540 lbs) |
| Static hold | 1500 kg (3300 lbs) |
| Chain short link | 6-10 mm |
| Line speed (Normal speed) | 18 m/min or 60 ft/min |
| Power supply (dc) | 12 or 24V |
| Motor (watts) | 1000W |
| Net weight (Electric) | 24 kg (52 lbs) |
| For hydraulic version: | |
| – Hydraulic pressure | 100 bar or1450 psi |
| – Hydraulic flow | 20 lpm or 5.3US gpm |
| – Net weight (hyd) | 17 kg (37 lbs) |
Note: 1000 VWCLP Suitable for 6-8mm Chain (Chainwheel selected separately)
Models VWC1000 are also available in 50mm & 150 TDC (Top deck clearance) on request.
All VWC dc models are supplied with reversing solenoid & foot switches. All VWC models come with emergency crank handle & clutch control lever.
VWC windlass includes motor/gearbox, chainwheel and reversing solenoid. Please contact Exalto Emirates to select the chainwheels when ordering our VW windlass. Other electrical accessories need to be ordered separately
