Windlass RC10-8 Vertical – With Capstan, 12V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC, CW
AED 6,849.69
OEM: P102573
Request a Quote
Description

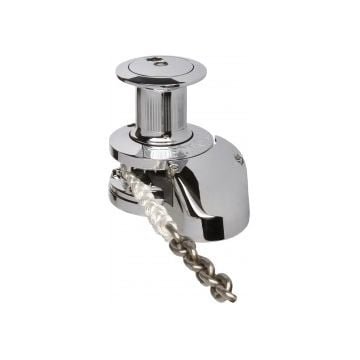

Maxwell Windlass + capstan RC10-8 12V 1000W 100mm TDC CW (clockwise)
| Model | RC10 – 8 8 mm – 5⁄16” |
| Maximum pull | 700 kg (1540 lbs) |
| Chain short link | 8 mm or 5⁄16” |
| Rope size (nylon)* | 14 mm – 16 mm or 9⁄16” – 5⁄8” |
| Chain speed (Normal working load ) | 24 m/min or 79 ft/min |
| Rope speed (anchor retrieval) | 20 m/min or 65 ft/min |
| Power supply (dc) | 12 V or 24 V |
| Motor power | 1000W |
| Net weight | 19 kg (42 lbs) |
Every Maxwell RC10 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately.
Note: RC10-8 Suitable for 8mm (5/16”) Chain and 14-16mm (9/16″-5/8”) Nylon Rope
