Thruster Bow Retractable 65 kgf 12V tunnel Dia. 185 mm

AED 24,075.97

Category: Brand:
OEM: STE6012D
Request a Quote

Description

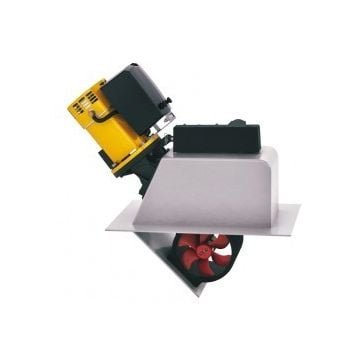

Swing (Retractable) thruster electric, 65 kgf 12 V, 185mm tunnel dia.

Easy docking, no drag, less noise
Even for the more experienced skipper, it can be difficult to manoeuvre the boat in harsh wind conditions and strong currents. The new line of retractables VETUS thrusters can be placed in shallow parts of the hull and will not disturb its smooth lines. This low drag solution will make your docking experience easier, faster and just plain more enjoyable.

A retractable thruster has the following advantages

Optimum forward placement in the bow, while maintaining depth by deployment
Less noise and vibration as it is not directly connected to the hull
Optimum tunnel length with minimal losses
Virtually no marine growth, as there is no light when thruster is in retracted and closed position
May be placed in the stern in (both sailing and motor) boats where it is not possible to install a tunnel thruster
Less drag as the lid is flush to the hull
Small dimensions
Suitable for power vessels up to 20 metres



Part number 06.07.0058
Model  STE6012D
Voltage (V)  12
Thrust (N/kgf)  650/65
Power (kW)  3
Motor, reversible D.C.  √
Tunnel diameter, internal (mm)  185
Weight (kg)  28
Current consumption (A)  280
Operating time (min.)  5
Main fuse, “slow blow” (A)  200
Batteries 12V min./max. (Ah)  1×105/1×145
Battery cables, length plus/min cables (m/mm²) 0-11/50 11-16/70
Battery main switch model BATSW  250
Dimensions, closed: H x L x W (mm)  330 x 722 x 273
Dimensions, opened: H x L x W (mm)  420 x 641 x 273
