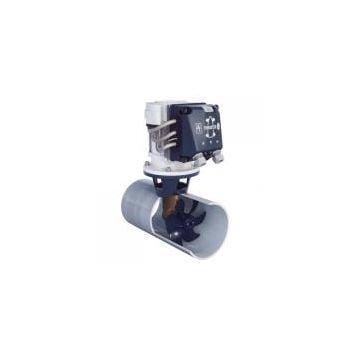

Thruster Bow PRO 65 kgf 12V tunnel Dia.185mm

AED 11,939.16

Category: Brand:
OEM: BOWA0651
Request a Quote

Description

Thruster Bow PRO 65 kgf 12V tunnel Dia.185mm Optimal tunnel length is 370-740mm Maximum tunnel length is 1110mm both the measurements taken at bottom end of the tunnel.

Bow thruster proportional brushless 65 kgf, 12V in 185mm tunnel with extended run time

Revolution: The BOW PRO thrusters are fitted with proven induction technology. This system makes the use of carbon brushes obsolete. As a result, the bow thruster is very quiet and has unlimited* runtime! The induction motor is controlled by the VETUS MCV motor controller. This in-house-engineered motor controller can handle both 12 V and 24 V, making the new bow thruster suitable for almost all boats!
Evolution: The BOW PRO thruster is controlled by a proprietary CANBUS protocol. There are two different panels available for this thruster; one fully-proportional basic panel and one fully-proportional panel with lock-function. This allows the boat to be moored without the use of ropes. Letting passengers board your vessel have never been this easy! Evolution is to continue on a set of good properties, so there are similarities with its predecessors: remained are the very silent propeller blades and the streamlined tailpiece.Retrofitting a BOW PRO thruster therefore is a piece of cake as the new motor is interchangeable with the tailpiece and flange of our thruster range.

  • Reliable & proportional control
  • Unlimited* run-time
  • Brushless (no maintenance & ignition protected)
  • Hold-function for easy docking
  • Highly efficient (up to 93%)
  • Safe & Easy to install
  • Backwards compatible: easily upgrade existing Vetus C & D series bow thrusters
  • THE solution for charter boats
  • More of these revolutionary models will follow shortly!

(*) The only limitation is the size of your battery bank.



Part number 06.07.0080
Model BOWA0651
Thrust in N (kgf) (power output) 650 (65)
Power kW 3.1
Brushless induction motor ✓
Tunnel diameter, internal, mm 185
Weight excl. tunnel, in kg 35
For DC Systems, Volt 12
Current consumption, Amps. 237
Operating time:
• continuously at maximum thrust, in minutes
• at reduced thrust
10
Endurance rated
Main fuse ZE355 (355 Amps)
Batteries 12 Volt D.C., min. Ah 1 x 125
Battery main switch, model BATSW 250

Additional information

OEM
