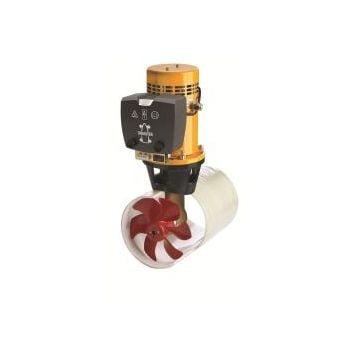

Thruster Bow 35 kgf 12V tunnel Dia.125mm

AED 4,150.78

Category: Brand:
OEM: BOW3512F
Request a Quote

Description

Thruster Bow 35 kgf 12V tunnel Dia.125mm Optimal tunnel length is 300-600mm Maximum tunnel length is 900mm both the measurements taken at bottom end of the tunnel.

Advantages of Vetus bow thrusters

  •  A single propeller creates less flow disturbance in the tunnel
  • The Vetus unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  •  All Vetus systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • Vetus systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All Vetus manoeuvring systems meet the EMC requirements



Part number 06.07.0025
Model BOW3512D
Thrust, N (kgf) 350 (35)
Power kW (hp) 1.5 (2)
Motor, reversible (dc) yes
Tunnel ID (mm) 150
Weight excluding tunnel (kg) 12
