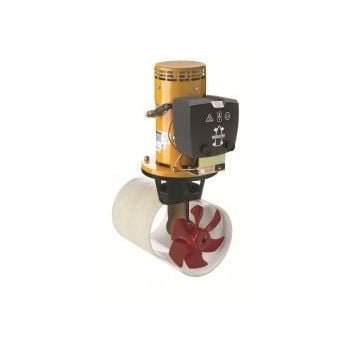

Thruster Bow 95 kgf 12V tunnel Dia.185mm

AED 11,828.47

Category: Brand:
OEM: BOW9512D
Request a Quote

Description

Thruster Bow 95 kgf 12V tunnel Dia.185mm Optimal tunnel length is 370-740mm Maximum tunnel length is 1110mm both the measurements taken at bottom end of the tunnel.

VETUS BOW THRUSTER 95 KGF, 12 VOLT DC
VETUS bow thruster with 95 kgf thrust force, suitable for boats from 12 to 17 metres in length. 12 Volt DC version.

Advantages of Vetus bow thrusters

  •  A single propeller creates less flow disturbance in the tunnel
  • The Vetus unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  •  All Vetus systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • Vetus systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All Vetus manoeuvring systems meet the EMC requirements



Model BOW9512D
Part number 06.07.0033
Thrust, N (kgf) 950 (95) – 12 V
Power kW (hp) 5.7 (8)
Motor, reversible (dc) yes
Tunnel ID (mm) 185
Weight excluding tunnel (kg) 30

Additional information

OEM
