Description
Thruster Bow 180kgf 24V tunnel dia.250mm Optimal tunnel length is 500-1000mm Maximum tunnel length is 1500mm both the measurements taken at bottom end of the tunnel.

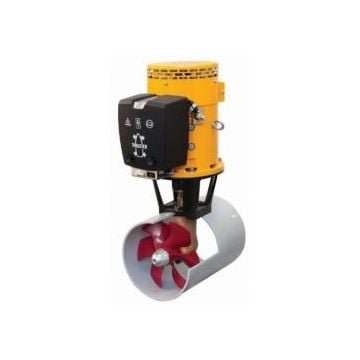

BOW THRUSTER 180KGF
This BOW thruster provides 180 kgf on a 24 V power supply.
This thruster is an evolution of the C version and features the newest innovations like temperature sensor and a low noise 6 blade propeller.
Run-time is dramatically improved (up to 4 minutes!). With a similar flange to other models in the range, the motor can be rotated in increments of 90° for easy accessibility.
The BOW18024D has the same low-noise propeller blades and a streamlined tail piece as it’s siblings.
Highlights:
- 180kgf from a 250 mm tunnel
- Easy to install
- Single propeller for a homogeneous flow in the thruster tunnel
- Strong, lightweight and corrosion resistant synthetic propeller
- Flexible coupling between tailpiece and motor reduces vibrations
- Meets EMC requirements
| Part number | 06.07.0107 |
| Model | BOW18024D |
| Thrust, N (kgf) | 2000 (200) – 24 V |
| Power kW (hp) | 7 (9) |
| Motor, reversible (dc) | yes |
| Tunnel ID (mm) | 250 |
| Weight excluding tunnel (kg) | 55 |
| Voltage | 24 |
| Current consumption (A) | 400 |
| Operating time – continuously, in minutes – maximum per hour, in minutes |
4 4 |
| Main fuse, “slow blow” (A) | 425 |
| Batteries 12 Volt dc (min. Ah / max. Ah) | 2 x 165 / 4 x 165 |
| Battery main switch, model BATSW/ BPMAIN | 600 / 24 |
| * This fuse is standard supply |
Additional information
| OEM |
|---|
