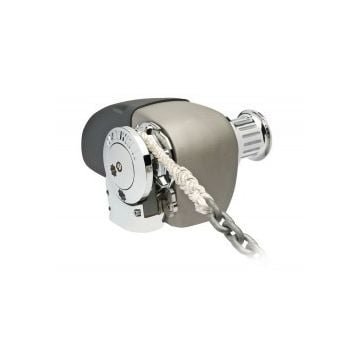

Windlass HRC10-10 Horizontal – Low Profile, 12V, 1200W, 850 kg Max Pull, 10mm Chain, Dual Direction
AED 7,219.13
OEM: P100248
Request a Quote
Description
Maxwell Windlass HRC10-10 12V 1200W 1 chain wheel (10mm short link chain & 16mm rope)
| Model | HRC10-10* |
| Maximum pull | 850 kg (1870 lbs) |
| Static hold | 1500 kg (3300 lbs) |
| Chain short link | 10 mm |
| Rope size | 16 mm |
| Chain speed (anchor retrieval) | 24 m/min or 79 ft/min |
| Rope speed (anchor retrieval) | 20 m/min or 65 ft/min |
| Power supply (dc) | 12 or 24V |
| Motor power | 1000W |
| Net weight | 19 kg (42 lbs) |
| Hydraulic version: | |
| – Hydraulic pressure | 138 bar or 2000 psi |
| – Hydraulic flow | 20 lpm or 5.3 US gpm |
| – Net weight – hyd | 13 kg (28.5lbs) |
Non capstan version. Weight is 1kg/2.2 lb. less than above indicated. *8 mm – 5⁄16” or 10 mm – 3⁄8” chainwheels can be used on either of the above models
Note: HRC10-10 Suitable for 10mm (3/8”) Chain and 16mm (5/8”) Nylon Rope
