Description

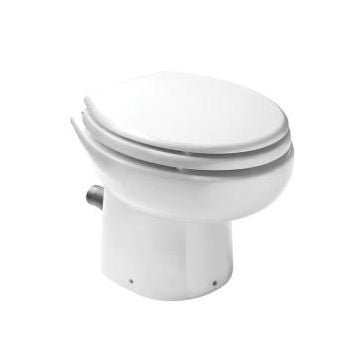

Electric compact marine toilet-WCPS24, 24V
Smallest electric toilet on the market. Its small dimensions and low weight make it the ideal replacement for older hand-operated pump toilets.
This toilet has a very small footprint because the electronic control box is mounted outside the toilet.
Specifications
Easy to install and maintain
Super quiet macerator with full stainless steel (AISI 316) blades and large capacity discharge pump (60dB (A))
Comes with a rocker switch (type WCPS)
Very low water consumption
| Part number | 04.01.0056 |
| Model | WCPS24 |
| Voltage (V) | 24 V |
| Power consumption (A) | 12.5 A |
| Type of control | Switch |
| External Ø discharge | Ø 19 mm |
| Water inlet connection | Female G3/4 |
| Soft close seat | No |
| Toilet seat height | No |
| Material | Porcelain |
| water supply | Connect to water pressure system. 1.7 – 6 bar |
| Water consumption (Ltr) | Depends on user |
| Maximum delivery height (mtr) | 3 |
| maximum drain height (mtr) | 30 |
| Pump output (LPM) | 36 |
| Panel dimensions (mm) | 45 x 75 |
| Panel build-in dpeth (mm) | 40 |
| Build-in panel protection | IP65 |
| Control options | Fill, Flush |
Additional information
| OEM |
|---|
