Description
Thruster Bow 220 kgf 24V tunnel dia.300mm Optimal tunnel length is 600-1200mm Maximum tunnel length is 1800mm both the measurements taken at bottom end of the tunnel.

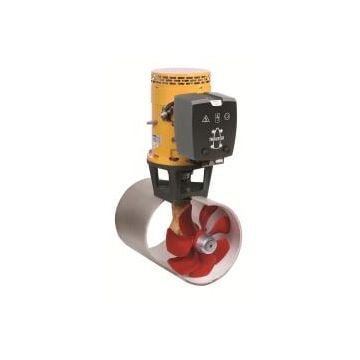

BOW THRUSTER 220KGF
VETUS bow thruster with 220 kgf thrust force, suitable for boats from 19,5 to 26 metres in length. 24 Volt version.
Highlights:
- Advantages of VETUS bow thrusters
- A single propeller creates less flow disturbance in the tunnel
- The VETUS unique propeller blade design minimises cavitation noise
- Spiral gears minimise transmission noise
- The use of a flexible coupling between tail piece and motor eliminates vibration
- All VETUS systems use a streamlined tail piece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install, supplied with clear installation and operation instructions
- VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
- All VETUS manoeuvring systems meet the EMC requirements
| Part number | 06.07.0038 |
| Model | BOW22024D |
| Thrust, N (kgf) | 2200 (220) – 24 V |
| Power kW (hp) | 11 (15) |
| Motor, reversible (dc) | yes |
| Tunnel ID (mm) | 300 |
| Weight excluding tunnel (kg) | 68 |
| Voltage | 24 |
| Current consumption (A) | 760 |
| Operating time – continuously, in minutes – maximum per hour, in minutes |
2.5 2.5 |
| Main fuse, “slow blow” (A) | 500 |
| Batteries 12 Volt dc (min. Ah / max. Ah) | 2 x 200 / 4 x 165 |
| Battery cables**, total length of positive and negative cables together (m / mm²) |
0-12 / 120 |
| Battery main switch, model BATSW/ BPMAIN | 600 / 24 |
| * This fuse is standard supply |
Additional information
| OEM |
|---|
