Description
Thruster Bow 160 kgf 24V tunnel Dia.250mm Optimal tunnel length is 500-1000mm Maximum tunnel length is 1500mm both the measurements taken at bottom end of the tunnel.

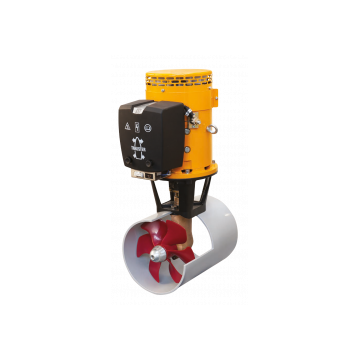

BOW THRUSTER 160KGF 24V
Extended runtime thrusters can be operated continuously for at least 7 minutes
Delivers a lot extra! Extended runtime thrusters can be operated continuously for at least 7 minutes without overheating.
There is no doubt that all boaters can benefit highly from these thrusters designed for joystick docking and other more demanding applications.
| Part number | 06.07.0074 |
| Model | BOW1604DE |
| Thrust, N (kgf) | 1600 (160) |
| Power kW (hp) | 7 (9,5) |
| Motor, reversible (dc) | yes |
| Tunnel ID (mm) | 250 |
| Weight excluding tunnel (kg) | 55 |
| Voltage, Volt D.C. | 24 |
| Current consumption (A) | 450 |
| Operating time – continuously, in minutes – maximum per hour, in minutes |
10 10 |
| Main fuse, “slow blow” (A) | 425 |
| Batteries 12 V dc (min. Ah / max. Ah @ 24V) | 280/560 |
| Battery cables**, total length of positive and negative cables together (m / mm²) | 0-29/120 |
| Battery main switch, model BATSW / type BPMAIN | 600 / 24 |
Additional information
| OEM |
|---|
