BLUE GUARD INNOVATIONS 12-24 V DC BLUETOOTH SOLID STATE CLUTCH PUMP SWITCH 20 A MAX

Model: BG-SWCL

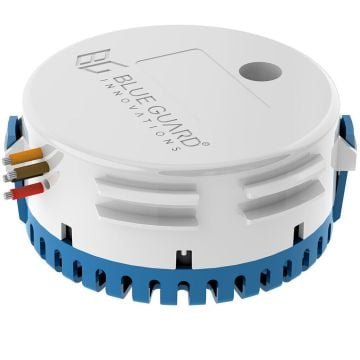

DC Clutch Pump Switch for BG-SW & BG-SWAThe BG-SWCL, in combination with either a BG-SW or a BG-SWA, is designed to control a DC clutch pump. The BG-SWCL has no moving parts and uses two integrated sensors to reliably detect liquid in the bilge. Having no moving parts that can be jammed or damaged, the solid-state BG-SWCL is built to outlast all the mechanical float switches on the market today. The BG-SWCL is CE and ISO 8846 Marine Ignition Protection Certified, tested to ABYC1500 standards. Patented technology.

Features:

• Max current: 20 A
• 2 integrated sensors – solid-state with no moving parts or mechanical float switches that can easily be damaged
• Solid state bilge pump switch rated for up to 20 A bilge pumps
• Integrated Bluetooth connectivity – connects to the BGI Config App available on IOS and Android devices
• Detachable mounting bracket
• CE and ISO 8846 Marine Ignition Protection Certified
• Proudly made in USA
• Operating Voltage: 12 V or 24 V DC
• Operating Temperature Range with Full Functionality: 32°F to 158°F
• Operating Temperature Range: -22°F to 185°F
• Four Wire System: Heavy-duty 14 gauge marine grade wires, 6 ft long
• IP-68 Rated Durability: Rugged, non-corrosive ABS plastic housing and mounting bracket
• Compact Size: Without Mounting Bracket – 4.6″D x 2″H / With Mounting Bracket – 5.9″L x 4.6″W x 2″H
