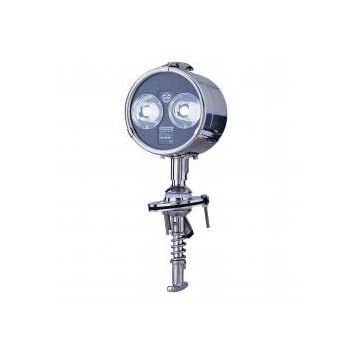

Searchlight LED 150CB 12/24V 10W 447m range cabin controlled
AED 2,076.47
OEM: 150CB-LED
Request a Quote
Description
DHR 150CB-LED
Searchlight 150mm, stainless steel, Cabin control, With fork, 10-32VDC 10W
The DHR150 searchlight is the most compact searchlight manufactured by DHR.
Made of brushed stainless steel 316 housing
All other materials are corrosion resistant and non-magnetic.
Has a 10V – 32V LED insert and a clear white beam.
Because of its relatively small size it is very suitable for vessel low in height
Following accessories can be ordered separately for DHR 150CB-LED
| EE Part number | OEM part number | Description |
| 09.01.0191 | 19001 | Wheelhouse control, stainless steel 316, small grip |
| 09.01.0192 | 19002 | Wheelhouse control, stainless steel 316, round grip |
| – | 19011 | Bearing cup, nylon |
| Part number | 09.01.0139 |
| Model | 150CB-LED |
| Voltage | 10-32VDC |
| Lamp base | Click-on terminal |
| Power | 10W |
| Range at 1 Lux | 447m |
| Divergency at 50% | 3.5° x 2.5° |
| Light Intensity | 200,000 cd |
| Weight | 2.6 kg |
| Body Material | Brushed SS316 |
| Motor Material | SS316 housing with black POM base |
| Optics | LED insert |
| Protection class (motor) | IP65 |
| Suitable for | inland navigation |
