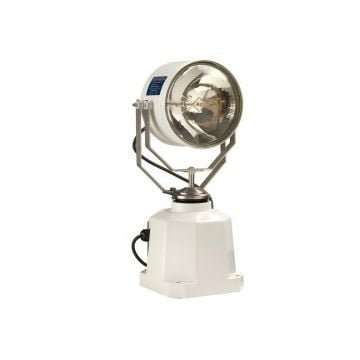

Searchlight DHR210RCN 230V 50/60Hz 1000W 593m range sealed beam remote controlled

AED 9,473.13

Category: Brand:
OEM: 210RCN220
Request a Quote

Description

DHR210RCN220, 210mm Sealed beam lamp, remote controlled searchlight

Searchlight 210mm, 240V, 1000W

The DHR210 searchlight housing is made of seaworthy, chromated aluminium with a white powder coated finish.
The 240VAC-1000 Watt has a wide beam.
It has a sealed beam lamp PAR64.
The advantage of a sealed beam lamp compared to a ordinary bulb is that when replacing the lamp, you also renew the optics.
Giving you always the optimal beam angle and light intensity.
The Remote control gives you the freedom to position the searchlight anywhere on the vessel, independent of the location of the controls.

Following accessories can be ordered separately for DHR210RCN220

EE Part number OEM part number Description
09.01.0105 JOY2011 Switch with handle
09.01.0106 PAN2011 Control panel for RCN searchlight
09.01.0186 22100 Stainless Steel Base 59mm.
– RADIORC Wireless control unit for rc 24V *
09.01.0185 RCN/B RAL9016  column 200x200x1000mm. Stainless steel 316
* 115V/230V on request











Part number 09.01.0102
Model 210RCN220
Voltage 230VAC50/60Hz
Lamp base GX16d
Power 1000W
Range at 1 Lux 593m
Divergency at 50% 12° x 9°
Light Intensity 352,000cd
Weight 10kg
Body Material Chromated aluminum with RAL9016 powder coat finish
Optics Sealed beam reflector
Protection class IP66
Suitable for Sea going vessels/ Inland navigation
Electric drive 6-13VDC
Control panel functions On/off switch for light & panel
Step-less speed control
Joy stick control
Control panel supply voltage 24VDC
