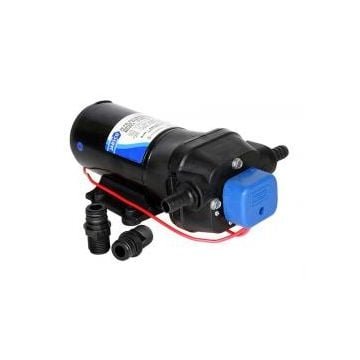

31620-0294 Par Max 4′ pressure-controlled pump

24 volt dc Standard Pressure

• Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
• Dimensions: 250mm long, 105mm wide, 100mm high
• Fuse Size: 7(amp)
• Output: 16 litres/minute (3.5 gallons/minute) open flow
• PRESSURE SWITCH – cuts in at 0.7bar (10psi) – cuts out at 1.7bar (25psi)
• Efficient, high-flow, self-priming pump serving 4 or more outlets
• Multi-diaphragm design self-primes to 1.5m vertical lift, can run dry without damage
• Supplied with snap-in ports for hose or Hep20 connectors
• Motor protected by automatic thermal overload cut-out
• Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
• Actual Weight: 2.88 Kg  (Approx. 3.38 Kg packed)
