Description
HotShot™ Series MARINE WASHDOWN PUMPS

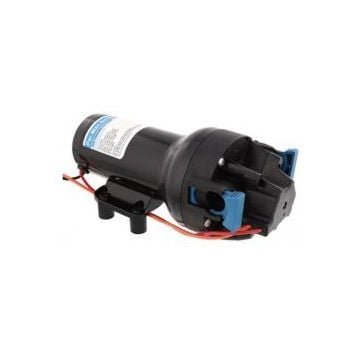

HotShot HD6
• 12VDC
• 6 GPM (23 LPM)
• 70 PSI (4.8 BAR)
Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps.
The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.
| Motor design | Brushed, permanent magnet TENV |
| Pumphead upper | Glass fiber reinforced polypropylene |
| housing material | Co-molded TPV |
| Diaphragm | EPDM |
| Check valves | 30 PSI (2.1 Bar) |
| Max inlet pressure | 32°F – 140°F (0°C – 60°C) |
| Fluid temperature range | 7ft min (2.1m min) |
| Dry self-priming capability | CE, ISO8846, RCM |
| Certifications | IPX6 |
