Generator DTL2590 25.9 kVA/20.7 kW 230/400V 3 Ph 34A 50 Hz 1500 Rpm Electric start sea water cooled 448 Kg
OEM: 08DTL2590
Request a Quote
Description

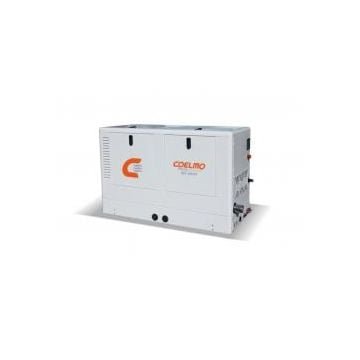

Coelmo Generator DTL2590 25.9 kVA/20.7 kW 230/400V 3 Ph 34A 50 Hz 1500 Rpm Electric start sea water cooled 448 Kg
| Engine | Kubota V2403-BG |
| Alternator | Meccalte NPE 32 – 4/T |
| Max power (kVA) / (kW) | 25.9/20.7 |
| Cont. power (kVA) / (kW) | 23.5/18.8 |
| Current | 34 A |
| RPM | 1500 |
| Cos φ (Power factor) | 0.8 |
| Rated voltage (V) & Phase | 230/400, 3 Ph |
| Frequency (Hz) | 50 Hz |
| Starting | Electric |
| Cooling | Sea water |
| Dimensions L x W x H | 1130 x 600 x 730 mm |
| Weight (kg) | 448 |
| Noise level | 54 dB(A) @ 7 meters |
| Fuel consumption | 6.10 Liter/h |
Additional control panel: 02.01.0011 This panel is installed on canopy as local controller in engine room.
Supplied with one EOS controller to be installed in the alternator electrical box (20.20.7050 – includes Controller main board & connection cables 14.5 m).
