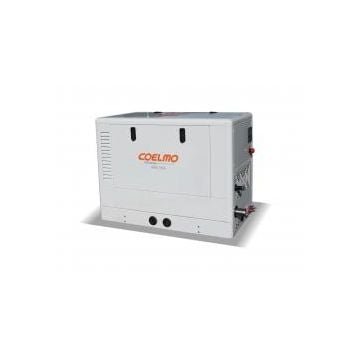

Generator DML740 7.4 KVA/7.4 kW 230V 1 Ph 29A 50 Hz 1500 Rpm Electric start sea water cooled 286 Kgs

Category: Brand:
OEM: 08DML740
Request a Quote

Description

Life on board becomes a unique and comfortable experience with the quiet and highly compact Coelmo Marine Generators. In more than sixty years of experience, Coelmo has studied and optimised each single part and component, in order to create safe, reliable and environmentally-friendly products. The casing is sound-proof and fully made of marine grade aluminium, in addition to being easy to open at five sides to facilitate maintenance. The fresh water/sea water cooling system makes it possible to install the system in less ventilated environments. By constantly monitoring Coelmo Marine Generators, EOS digital control panel quickly shows the functioning parameters and alarms, if any. In order to enjoy a more comfortable life on board, Coelmo Marine Generators are connected to Integra, the Coelmo ologeneration system, which is the single system to manage energy sources on board. The reliability of Coelmo Marine Generators is also due to the international guarantee, sustained by a distributorship with Exalto Emirates, which are ready to provide spare parts and immediate assistance.



Engine Kubota D1105-BG
Alternator Meccalte NPE 32 – B/4
Max power (kVA) / (kW) 7.4 / 7.4
Cont. power (kVA) / (kW) 6.7 / 6.7
Current (A) 29
RPM 1500
Cos φ (Power factor) 1
Rated voltage (V) 230, 1 Ph
Frequency 50 HZ
Starting Electric
Cooling system Sea water
Dimensions L x W x 910 x 540 x 670 mm
Weight 286 kg
Noise level 52 dB(A) @ 7 meters
Fuel consumption 2.70 Liter/h

Additional control panel: 02.01.0011 This panel is installed on canopy as local controller in engine room.
Supplied with one EOS controller to be installed in the alternator electrical box (20.20.7050 – includes Controller main board & connection cables 14.5 ).

Supplied with one EOS controller to be installed in the alternator electrical box (20.20.7050 – includes Controller main board & connection cables 14.5 m).
