Generator DML2000 20 kVA/20 kW 230V 1 Ph 90A 50 Hz 1500 Rpm Electric start sea water cooled 430 Kg
OEM: DML2000
Request a Quote
Description

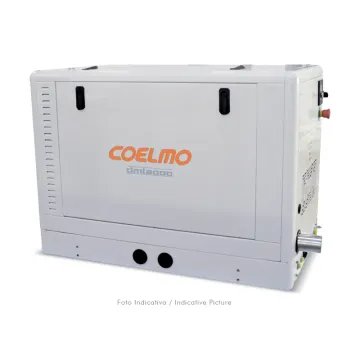

Coelmo Generator DML2000 20 kVA/20 kW 230V 1 Ph 90A 50 Hz 1500 Rpm Electric start sea water cooled 430 Kg
| Engine | Kubota V2403-BG |
| Alternator | Meccalte NPE 32 – E/4 |
| Max power (kVA) / (kW) | 20/20 |
| Cont. power (kVA) / (kW) | 18/18 |
| Current (A) | 90 |
| RPM | 1500 |
| Cos φ (Power factor) | 1 |
| Rated voltage (V) & Phase | 230, 1 Ph |
| Frequency (Hz) | 50 Hz |
| Starting | Electric |
| Cooling | Sea water |
| Dimensions L x W x H | 1130 x 600 x 730 mm |
| Weight (kg) | 430 |
| Noise level | 54 dB(A) @ 7 meters |
| Fuel consumption | 6.1 Liter/h |
Additional control panel: 02.01.0011 This panel is installed on canopy as local controller in engine room.
Supplied with one EOS controller to be installed in the alternator electrical box (20.20.7050 – includes Controller main board & connection cables 14.5 m).
Supplied with one EOS controller to be installed in the alternator electrical box (20.20.7050 – includes Controller main board & connection cables 14.5 m).
